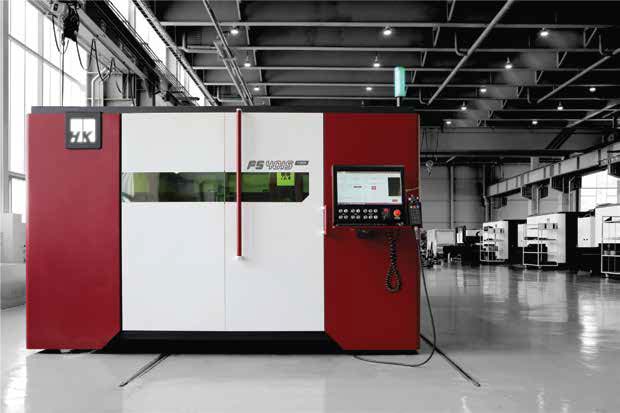

Enhance your cutting capability up to 60” x 160” sheet size
The benefit of 10ft plus 3ft for sheet metal fabricators
#1) When it comes to manufacturing, efficiency is the key to success. One of the many ways to be efficient in the production process is material utilization. It is crucial to use up as much sheet material as possible and minimize the amount of scrap. For most cases, the larger the sheet size, the more efficient the material utilization is. Listed below are standard sheet metal sizes provided in U.S. It is reported that the material utilization for a 60”x144” sheet is approxi- mately 10% higher than 60”x120” size sheet or smaller.
36 x 96, 36 x 120, 36 x 144, 48 x 96, 48 x 120, 48 x 144, 60 x 120, 60 x 144, 60 x 160
#2) When it comes for the need to acquire an oversize laser machine in order to cut oversized parts, the main demand is not for expanded width, but for the length, which is mostly up to 144 inches. It is no longer necessary to acquire an oversize massive laser machine (ex. 4020 model) just to cut longer parts.
Auto Focus Cutting Head**
- Process monitoring system to monitor the temperatures of all optics, nozzle and electronics at the cutting head
- Perfect sealing between motorized linear guide and optics chamber to prevent any possible contamination
- Upper protective window to the collimator, minimizing the risk of contamination of the collimator
HK Controller
- High speed controller with Window-based 64MB RAM and high capacity SSD hard disk drive
- 21” flat touch screen with user-friendly intuitive HMI design
- Data communication by USB or Ethernet LAN Built-in cutting database library for various materials
Beam shaping Technology**
Unlike the conventional beam size variation at the cutting head by using extra zoom lenses, HK’s revolutionary solution for beam shaping is that the mode and profile of the fiber laser beam is variable at the laser resonator. This technology eliminates the demand to have a complicated cutting head design for beam shaping.
- No motorized zoom optics at the cutting head
- No free-space optics coupling at the beam delivery cable
- 100% power available from a single laser source
